Hi Malcolm,

Thanks for the explanation. I have a CD which has almost 1000 images.  I just grabbed one that seemed like it would be a good shot of the liver.  Yes, I was in that machine for a while and hope to NOT have to do it again.

Thanks for your help - again!!!

Caryn

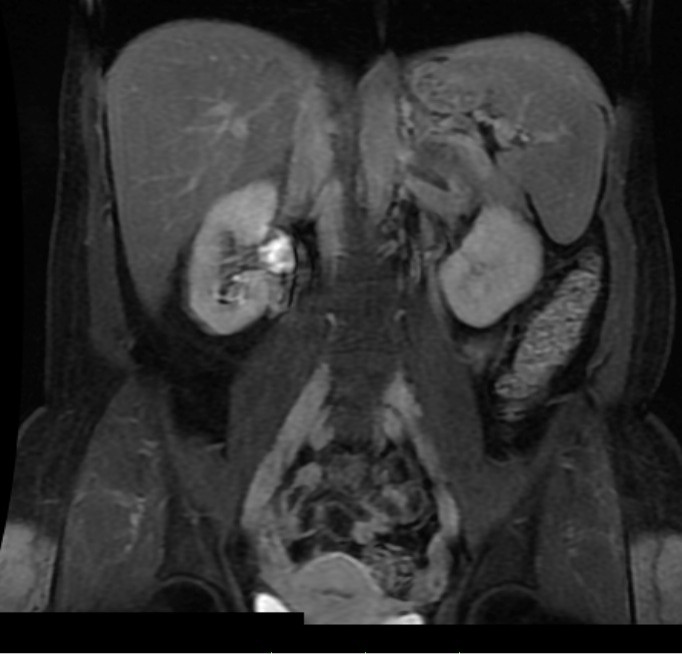

Hi Caryn, What you have posted is a single, coronal , early venous phase T1 weighted scan. You can see the liver, spleen and kidneys. The kidneys look white due to the contrast. Unfortunately, an MR scan produces data that could provide hundreds of images. These are taken in transverse, coronal and sagittal planes. They are also done in T1, T2 and Spinecho sequences. They are also done in noncontrast, arterial, saturation, venous and late venous phases. That is why an MR takes a while, and you would have had to 'hold your breath' for each sequence. MR scans are diagnosed on a computer with several high def. screens. Images are manipulated, 3D images are obtained, and by scrolling through the images of all of the sequences, a diagnosis is made. Sample images are often printed out for the benefit of the referring doctor.  We used to give patients a CD with relevant films.

So essentially, diagnosing an MR is complex, requires lots of computing power and multiple image monitors. A single image means nothing. Sorry.

Okay, thanks. I have an Apple computer, so let me give it a shot.

Caryn wrote:

---

I have an MRI image that was done today. I wish I could figure out how to save the image and upload it.  Would anyone be able to comment if I were able to figure this out?

---

 Caryn,

Where is the MRI image?  If it is on a web page and you are viewing it,  you can do a "print-screen" operation by hitting the PRTSCN key on your keyboard, then saving as a .jpg file in Microsoft Paint.   From there you can upload the image to this forum.     If you have an Apple computer you do a "printscreen" operation by following these directions:

Command+Shift+3  Saves the screen as a file on the Desktop.    More instructions here:  http://osxdaily.com/2010/05/13/print-screen-mac/

I have an MRI image that was done today. I wish I could figure out how to save the image and upload it.  Would anyone be able to comment if I were able to figure this out?

Alright, I hope this is a good shot.  From the last test which was a fibroscan, I was told probably between stage 2-3 fibrosis. This is an MRI I had done today in preperation of upcoming treatment.  I hope someone can comment. I wont hold you to it - I am going to see my specialist in a few weeks.

Also thanks for the Mac tips!  I need all of the help I can get with this thing!!

My final post on this, then I'll get off my soapbox. Liver Biopsy is not an exact science, as the interpretation can depend on the quality of the biopsy specimen, the site of biopsy and the skill of the Histopathologist. However it's the best we have. To give some idea of progression, here are my biopsy results'

History- probably acquired HCV in Vietnam in 1969-70. Routine blood test for Middle East employment in 1981 showed elevated liver enzymes. No symptoms.

Biopsy 1- 6.9.1983 (King's College Hospital london) A0 F0 -Normal

Biopsy 2- 7.4.1990 (Royal Brisbane Hospital) A1 F0-1 Mild inflammation, early portal fibrosis

Biopsy 3- 24.6.1998 (Royal Brisbane Hospital) A2 F2-3 Portal tract inflammation. some periportal and early bridging fibrosis)

This biopsy was reviewed by an eminent Histopathologist when I transferred to Princess Alexandra Hospital on 11.11.1998. His opinion was A2 F3-4 based on the degree of bridging fibrosis.

Fibroscan 3.3.2007 Reading of 30.7 kilopascals (97% chance of cirrhosis)

The slow progression to cirrhosis over ?35 years is fairly typical. Please try to eradicate the virus as early as possible

Tim, Liver Imaging in HCV is to detect early HCC. All patients with chronic HCV have an increased risk of HCC, particularly cirrhotics. Ultrasound of the liver is used the most, and should be done every 6 months. In most patients, an adequate study can be performed, providing you use a modern machine, and experienced Technician. Some people are hard to image- often because of e.g. obesity or high diaphragms. I am difficult myself, and although I have been examining myself for 30 years, I am not confident that I can see certain segments. That is why I have a CT or MRI every 6 months.

There will not be any significant changes in the liver appearances until decompensated cirrhosis occurs. My liver looks completely normal on U/S, CT and MR and I have had cirrhosis for probably 10 years.

Caryn, I cannot give individual advice. Your ultrasound report shows the limitations of this modality. Apart from the slightly enlarged liver ( which most HCV patients will have) the liver damage has to be severe for it to show on U/S.

FibroSURE and FibroSPECT tests were developed in about 2003 to try to measure fibrosis without liver biopsy. They are used mostly in the USA and measure blood markers. They are fairly accurate in F0-1 and in F4 disease, but not so good in between. Your figure falls into the  F2 to F3 range, but there may be a small percentage of F1 or F4.

In Australia, we have used FibroSCAN since 2006. This uses an ultrasound beam to measure the stiffness of the liver (that more or less relates to fibrosis). Again, this is most accurate in F0-1 or F4 patients. My reading was 30.7 kilopascals in 2008. F4 patients are mostly 17 and above, so I am definitely cirrhotic.

Malcolm, having been a radiologist- perhaps you could shed light on my gasto doc's comment that [for me] the six month ultrasound they have been doing is mostly to monitor for appearance of cancer, and not particularly to monitor the progress of the HCV.

JoAnne, As you see from my post, there is no such thing as 'mild cirrhosis'. You either have cirrhosis or you don't. ' Early cirrhosis' is another term I see. There is no such animal! On what basis do you have 'mild cirrhosis'? Have you had a biopsy, Fibroscan, or is that just an estimate based on your previous biopsy?. I would ask why such a label has been given to you.

In HCV, fibrosis does increase over time, but the time frame is very variable. Not all patients progress to cirrhosis.

Oh Mallani!!  You have just made me a very excited person!  I am going to post my ultrasound results along with my fibroscan results and if you have the time or feel like responding, I would greatly appreciate it!  Here is the ultrasound. I am just noting what is said about my liver on the ultrasound. I read your post below and the information is great. I just want to see what your thoughts are based on these results.

Ord diag: Hep C W/O hepatic coma

The liver is enlarged with a span of 18.5 cm. The liver is slightly echogenic suggesting fatty infiltration or cirrhotic fibrosis. No focal hepatic lesion is noted.

Impression: Enlarged echogenic liver suggesting either fatty infiltration or cirrhosis.

Fibroscan:

 fibrospect 2 index = 59

 Consistent with METAVIR F2-F4

fibrospect 2 index >=59

the chance of your patient having f2-f4 is 83%. the chance of your patient having F0 is 3.8% and the chance of having F1 is 13.2% (this is pretty self explanatory, but wonderng about the accuracy). I have ready that once you get in to 2-4, the accuarcy level drops.

Please let me know what this means to you. My doctor said based on this, she thought I was between stage 2-3 fibrosis. Do you know how accurate these tests are?  I have never had a biopsy.

Thanks!!

Glad you can understand it guys. Being a retired radiologist specialising in liver imaging helps. I have been to a lot of Liver Meetings since 1985!

Malcolm,

thanks for taking the time to bring together the necessary information components, and painting a coherant picture, for what otherwise can be a confusing and intimidating subject.

There appears to be some confusion about cirrhosis. I read posts stating 'Cirrhosis Grade 2 'etc. There are no grades to cirrhosis. Cirrhosis is either compensated , intermediate or decompensated. It is scored using a variety ofclinical and pathology tests, and may be Stage A, B or C ( using the Child-Pugh method). The MELD score is a newer version of this.

HCV causes liver inflammation and fibrosis. The degree of damage can only be assessed by a liver biopsy. The biopsy shows the amount of activity and fibrosis in the liver. It is often reported using the METAVIR score where A is activity and F is fibrosis. A report may read 'A2-F2' . Activity is classed as 0 to 3, and Fibrosis is classed as 0 to 4. Fibrosis Stage 4 (F4) is cirrhosis. Anyone who has a liver biopsy and is told they have Grade 0, 1, 2 or 3 disease, does NOT have cirrhosis.

Sorry if this sounds pedantic but I think it is important that people don't think they are cirrhotic when they are not. The word cirrhosis is scary.

It has become obvious that cirrhotics who can achieve SVR can actually reverse much of the fibrosis and reduce their fibroscan score. Together with the marked reduction of HCC, this is a strong indication for treatment of compensated cirrhotics.
